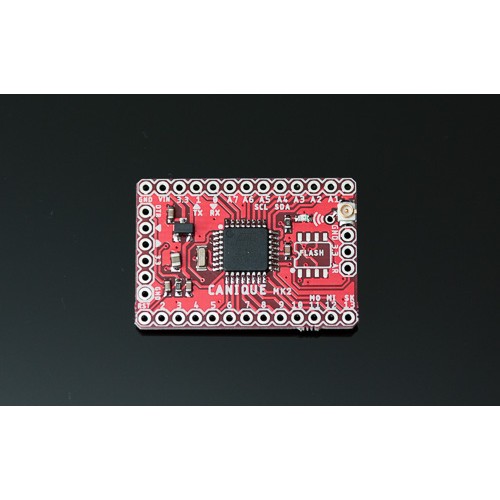

The MK2 is an Arduino compatible board that is based on the Atmega328P.

It has an onboard RFM69W/RFM69HW transceiver but you can also order it without the transceiver.

You can order the MK2 with a u.FL connector to connect it to external antennas via a cable, or you can just use the supplied straight wire antenna.

Find out more about the MK2

If you are searching for RFM95 or RFM96 LoRa support, the Canique MK3e is the right choice for you.


What you get with this product:

  • Canique MK2 board with onboard RFM69 transceiver (if ordered)
  • If RFM69 is included: a straight wire antenna of 8.6cm (868MHz) / 17.3cm (433MHz) length
  • 1x right angle 6 pin Header for the FTDI port, 2x straight 13 pin Headers for the output and input pins


Write a review

Please login or register to review

Canique MK2

  • Product Code: MK2
  • Availability: In Stock
  • 10.15€


Available Options


Related Products

Canique Boost

Canique Boost

Converts an input voltage starting at 0.8V to a higher voltage - output voltages of 2.4 to 5V are av..

4.79€

Canique MK3e

Canique MK3e

The MK3e is an Arduino compatible board that is based on the Atmega328P.It has an onboard RFM95 / RF..

13.00€

RFM69HW

RFM69HW

The RFM69HW is a radio transceiver used in our Canique MK2.It can achieve 1km range with a straight ..

3.80€

Winbond W25X40CLSNIG Flash Memory

Winbond W25X40CLSNIG Flash Memory

The W25X40CLSNIG 4 MBit flash memory is used in our Canique MK2/MK3e etc.It's available in our shop ..

1.80€

Solder Pins Service for MK2/MK3e

Solder Pins Service for MK2/MK3e

This product is an additional service:If you order an MK2/MK3e you can add this service in case you ..

3.00€

Tags: Atmega328P, Arduino, Arduino RFM69W, Arduino RFM69HW, Moteino clone
